$0.00

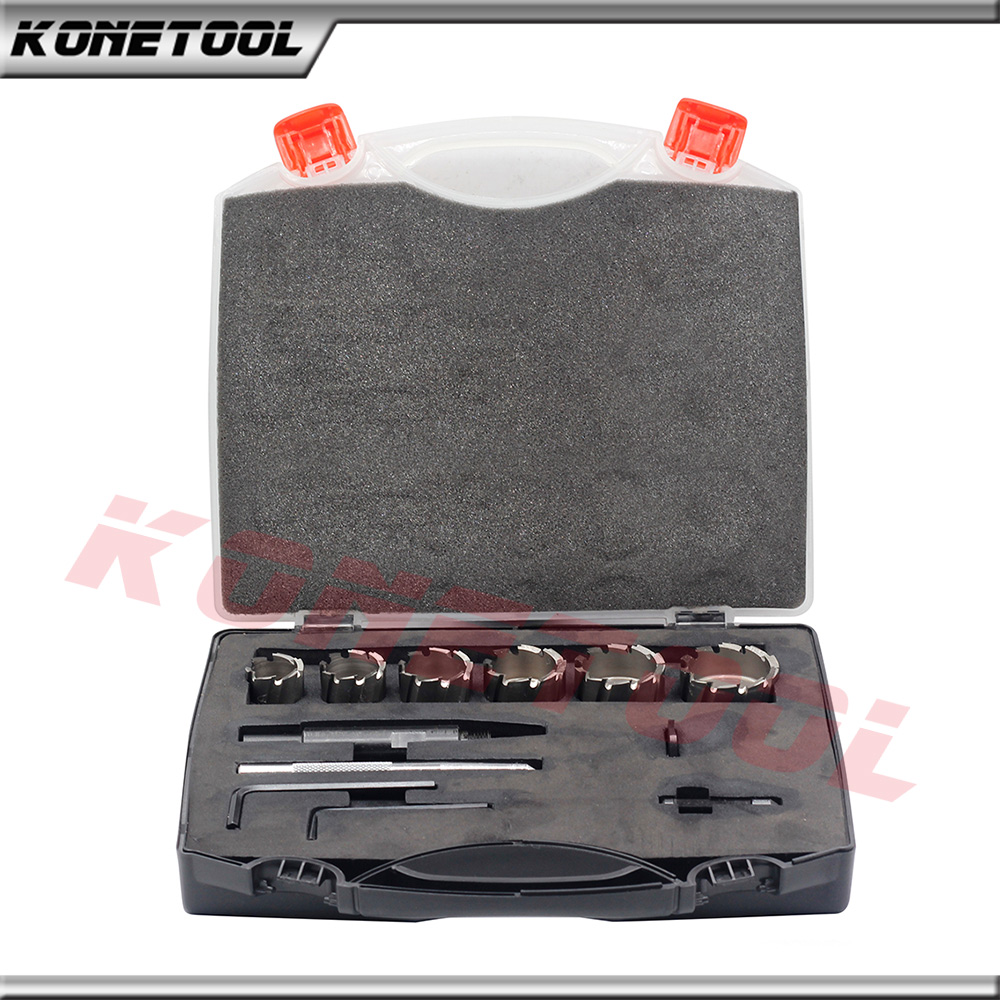

Konetool offers ready-to-sell annular cutter sets which contain multiple cutters in various sizes, for your convenience to carry, store, and transport. We offer a full line of mag drill bit kits to meet the needs that require a variety of cutters for drilling holes in different sizes.
Material: HSS, Tungsten Carbide
Shank type: Weldon Shank, Universal Shank(Nitto Shank), Fein Shank, Threaded Shank
Request for quotation for more detailed information (MOQ, price, delivery, etc).
Annular cutters, also called core drills, are proven in their daily use in many applications like railway, shipbuilding, and on-site repair. Konetool provides three standard types of annular cutter sets. Customization service is also available, which means you can build your own annular drill bit set.
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Weldon Shank | 12 | 25 |
| 14 | 25 | ||
| 16 | 25 | ||
| 18 | 25 | ||
| 20 | 25 | ||
| 22 | 25 | ||
| Pilot Pin | 6.34 | 77 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Weldon Shank | 12 | 50 |
| 14 | 50 | ||
| 16 | 50 | ||
| 18 | 50 | ||
| 20 | 50 | ||
| 22 | 50 | ||
| Pilot Pin | 6.34 | 102 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Universal(Nitto) Shank | 12 | 25 |
| 14 | 25 | ||
| 16 | 25 | ||
| 18 | 25 | ||
| 20 | 25 | ||
| 22 | 25 | ||
| Pilot Pin | 6.34 | 77 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Universal(Nitto) Shank | 12 | 50 |
| 14 | 50 | ||
| 16 | 50 | ||
| 18 | 50 | ||
| 20 | 50 | ||
| 22 | 50 | ||
| Pilot Pin | 6.34 | 102 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Weldon Shank | 12 | 25 |
| 14 | 25 | ||
| 16 | 25 | ||
| 18 | 25 | ||
| 20 | 25 | ||
| 22 | 25 | ||
| Pilot Pin | 6.34 | 77 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Weldon Shank | 12 | 50 |
| 14 | 50 | ||
| 16 | 50 | ||
| 18 | 50 | ||
| 20 | 50 | ||
| 22 | 50 | ||
| Pilot Pin | 6.34 | 102 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Weldon Shank with Holes | 12 | 50 |
| 14 | 50 | ||
| 16 | 50 | ||
| 18 | 50 | ||
| 20 | 50 | ||
| 22 | 50 | ||
| Pilot Pin | 6.34 | 102 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Weldon Shank | 14 | 35 |
| 16 | 35 | ||
| 18 | 35 | ||
| 20 | 35 | ||
| 22 | 35 | ||
| Pilot Pin | 6.34 | 90 | |
| 7.98 | 90 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Weldon Shank | 14 | 50 |
| 16 | 50 | ||
| 18 | 50 | ||
| 20 | 50 | ||
| 22 | 50 | ||
| Pilot Pin | 6.34 | 106 | |
| 7.98 | 108 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Universal(Nitto) Shank | 14 | 35 |
| 16 | 35 | ||
| 18 | 35 | ||
| 20 | 35 | ||
| 22 | 35 | ||
| Pilot Pin | 6.34 | 90 | |
| 7.98 | 90 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Universal(Nitto) Shank | 14 | 50 |
| 16 | 50 | ||
| 18 | 50 | ||
| 20 | 50 | ||
| 22 | 50 | ||
| Pilot Pin | 6.34 | 106 | |
| 7.98 | 108 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Weldon Shank | 14 | 35 |
| 16 | 35 | ||
| 18 | 35 | ||
| 20 | 35 | ||
| 22 | 35 | ||
| 24 | 35 | ||
| Pilot Pin | 6.34 | 90 | |
| 7.98 | 90 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Weldon Shank | 14 | 50 |
| 16 | 50 | ||
| 18 | 50 | ||
| 20 | 50 | ||
| 22 | 50 | ||
| 24 | 50 | ||
| Pilot Pin | 6.34 | 106 | |
| 7.98 | 108 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Universal(Nitto) Shank | 14 | 35 |
| 16 | 35 | ||
| 18 | 35 | ||
| 20 | 35 | ||
| 22 | 35 | ||
| 24 | 35 | ||
| Pilot Pin | 6.34 | 90 | |
| 7.98 | 90 |
| Product | Shank Type | Diameter(mm) | D.O.C./Length(mm) |
| Annular Cutter | 3/4″ Universal(Nitto) Shank | 14 | 50 |
| 16 | 50 | ||
| 18 | 50 | ||
| 20 | 50 | ||
| 22 | 50 | ||
| 24 | 50 | ||
| Pilot Pin | 6.34 | 106 | |
| 7.98 | 108 |
(The mini cutter set is ordered as a customization choice)
| Product | Diameter (mm) | D.O.C. (mm) | Shank Type |
| Annular Cutters | 8 | 6.35 | Thread Shank |
| 10 | 6.35 | ||
| 12 | 6.35 | ||
| 14 | 6.35 | ||
| 16 | 6.35 | ||
| 18 | 6.35 | ||
| 20 | 6.35 | ||
| Accessories | Size | ||
| 3.15*33*60° | |||
| 14.5*1.5 | |||
| 22.5*1.5 | |||
| 10*8*3/8-24UNF | |||
| 4 | |||
| 8*108 | |||
| Product | Diameter (mm) | D.O.C. (mm) | Shank Type |
| Annular Cutters | 5/16” | 1/4″ | Thread Shank |
| 3/8″ | 1/4″ | ||
| 7/16″ | 1/4″ | ||
| 1/2″ | 1/4″ | ||
| 9/16″ | 1/4″ | ||
| 5/8″ | 1/4″ | ||
| 3/4″ | 1/4″ | ||
| Accessories | Size | ||
| 3.15*33*60° | |||
| 14.5*1.5 | |||
| 22.5*1.5 | |||
| 10*8*3/8-24UNF | |||
| 4 | |||
| 8*108 | |||
| Product | Diameter (mm) | D.O.C. (mm) | Shank Type |
| Annular Cutters | 7/8″ | 1/2″ | Thread Shank |
| 1″ | 1/2″ | ||
| 1-1/8″ | 1/2″ | ||
| 1-1/4″ | 1/2” | ||
| 1-3/8″ | 1/2″ | ||
| 1-1/2″ | 1/2″ | ||
| Accessories | Size | ||
| 8*108*60° | |||
| 6.34*44 | |||
| 1/2”*1/2”*1/2”-20UNF | |||
| 22.5*1.5 | |||
Machine:
Mag drills, Drill presses, Hand-held drills, Milling machines, CNC machines, Lathes
Cutting material:
Stainless steel, Copper, Plastic, Mild steel, High tensile strength steel, Structure steel, Cast iron
Konetool provides quality HSS annular cutters as well as TCT annular drill bits, of a variety of shank types, including Weldon shank, Univeral shank( Nitto shank), Fein quick-IN shank, and threaded shank. Therefore our mag drill bits are suitable for a wide range of slugger drills like Rotabroach, Hougen, Nitto, Fein, Jancy, JEI, Unibor, Ruko, G&J Hall, Magtron, Evolution, Euroboor, BDS, Alfratool(Rix), etc. Our broach cutters are designed to fit mag drills. If using an industrial arbor, it can also fit drill presses, hand-held drills, and milling machines.
Konetool has been developing our products and service for more than 20 years, offering annular cutters for every application of our customers. Request for quotation for more detailed information (MOQ, price, delivery, etc).
